WM8960 Stereo Audio Codec HAT with 0.96" OLED, Audio Playback & Recording Expansion Board, 3.5mm Headphone Jack, Dual MEMS Microphones, Speaker Terminals, Compatible with Raspberry Pi

Overview Upgrade your embedded audio projects with the WM8960 Stereo Audio Codec HAT—a compact audio expansion board designed for compatible with Raspberry Pi. Powered by the professional WM8960 audio codec, this HAT supports both audio playback (output) and audio recording (input), making it a practical solution for bidirectional audio applications such as maker builds, teaching demonstrations, smart hardware prototypes, and audio device modifications. Fully integrated audio I/O: The board combines a standard 3.5mm headphone jack, dual MEMS microphones, and dual-channel speaker terminals on one module. It enables plug-and-play audio capture and stereo playback without needing additional external sound cards or USB adapters—ideal when you want a cleaner, stacked design. Stereo codec performance: The WM8960 codec provides stereo encode/decode with excellent sampling and audio quality, supporting common embedded audio workflows. It also supports stereo effects such as 3D surround (software/driver dependent), suitable for diverse audio processing scenarios. Visual status feedback: An onboard 0.96-inch OLED display provides real-time status output, helping you verify operation quickly during setup and debugging. Easy installation: With a built-in Pi 40-pin female header, this WM8960 audio HAT installs directly onto the GPIO header for straightforward audio expansion—no complex soldering or jumper wiring required. Note: This is a wired audio expansion board (no wireless functions). Software configuration may be required depending on your OS and audio stack. Package Contents 1. WM8960 Audio Codec LCD HAT X1 2. 45100 Cavity 8Ω 5W - 4PIN 2.0 Dual Diaphragm Speaker X1 3. Double-row female header spacer X1 4. screw pack X1

• 🎧 WM8960 Stereo Audio Codec HAT – High-performance WM8960 audio codec board supports stereo playback and recording for embedded audio projects; clear sound for maker prototypes and DIY audio processing.
• 🎙️ Playback + Recording, Dual MEMS Mics – Integrated dual MEMS microphones for audio input/recording and stable capture; ideal audio recording HAT for voice capture, demos and experiments.
• 🔊 Headphone Jack + Speaker Terminals – Onboard 3.5mm headphone output and dual-channel speaker terminals; supports direct speaker drive for audio playback without extra audio adapters.
• 🖥️ 0.96" OLED Status Display – Built-in 0.96 inch OLED display shows working status and key info for intuitive debugging; practical audio expansion board for classroom and lab use.

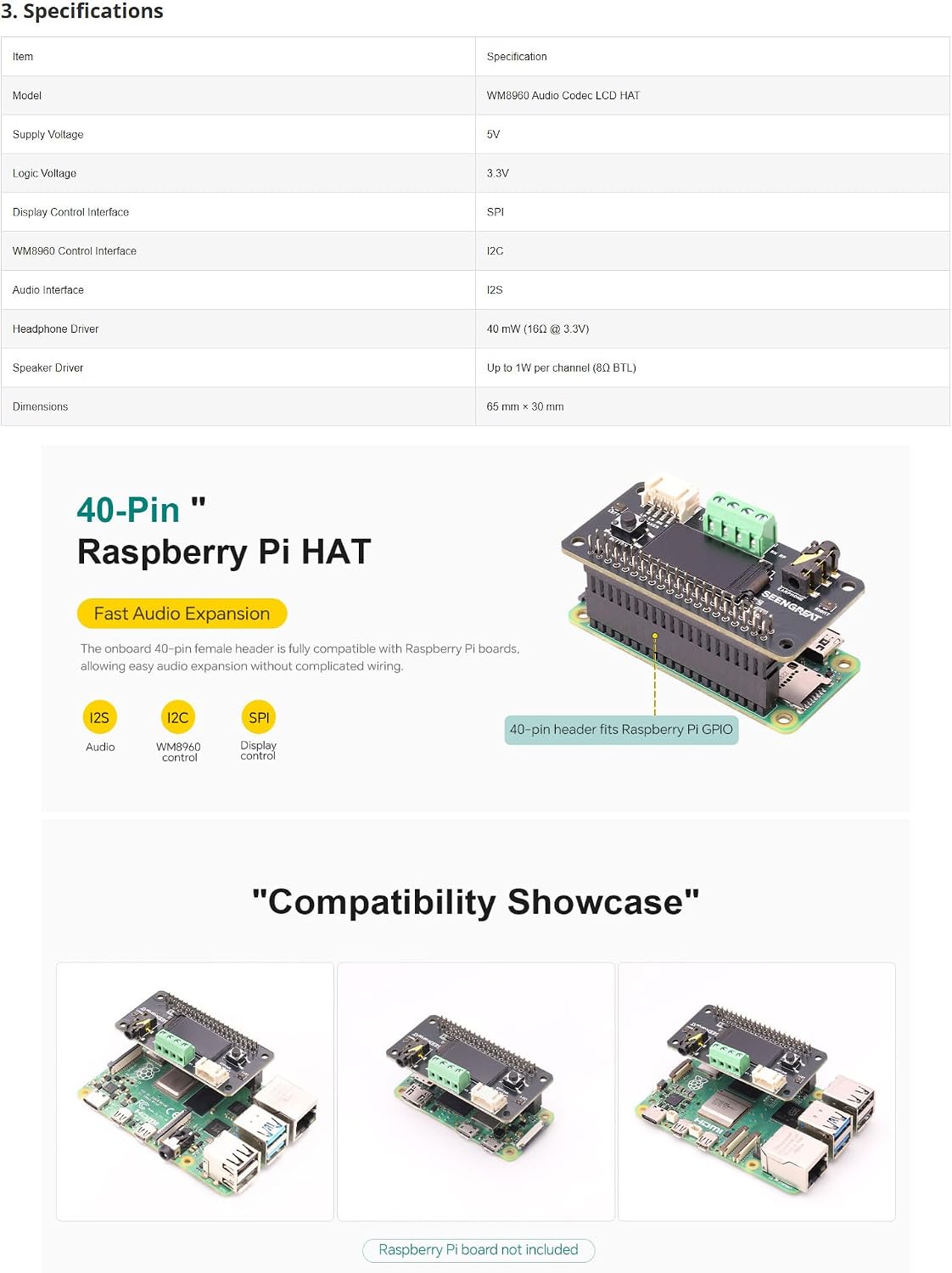

• 🔌 40-Pin Header, compatible with Raspberry Pi – 40-pin female header design enables plug-and-play installation for Raspberry Pi boards; clean stacking audio HAT solution with minimal wiring.
