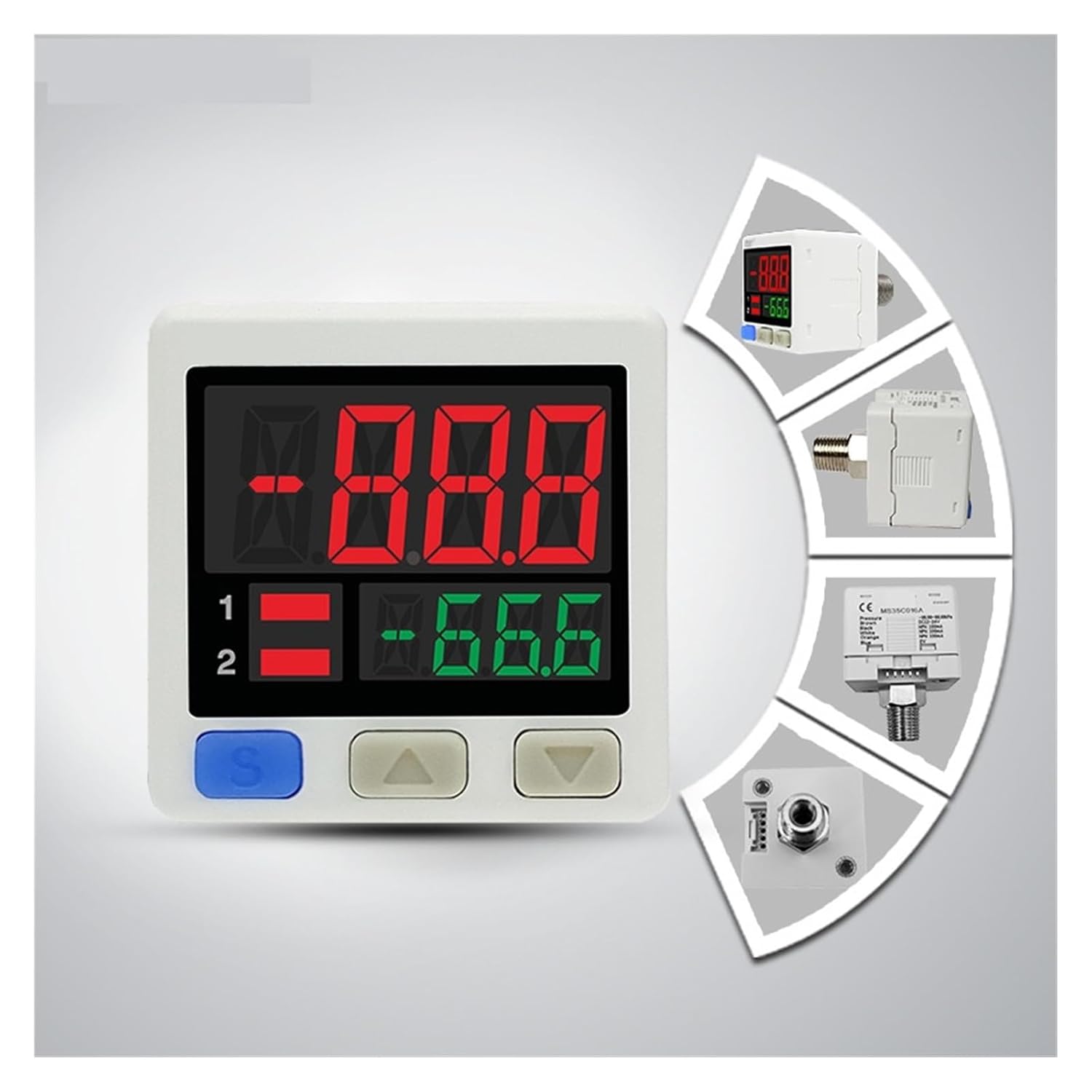

Digital Pressure Switch MS30 High Precision Digital Pressure Gauge Compressor Electronic Vacuum Air Measuring Instruments Measurement Switch(1 NPN,-100-100KPa)

Specification:Digital display pressure switchMODELMS30CMS30PRated Pressure Range-101.3-101.3KPa-0.101-1.000MPaDisplay Pressure Range-101.3-101.3KPa-0.101-1.000MPaWithstang Pressure500KPa1.5MPaResolution0.1KPa1KPaPower supply12-24V DC±10%Current Consumption40mAIndicator Accuracy±1%F.S; ±1digitsResponse Accuracy±0.2%FS;±2digitsProtectionLevelIP40 (IEC )Working Environment0~50;35%~85% RhLCD Display Mode3 color , 4 times/1 secPressure portA:R1/8+M5M:M5Package Includes:Pressure switch * 1 2m cable * 1 User manual * 1==========High-concerned chemical : NoneModel Number : MS30Max Measuring Range : 100 - 149 PSIDisplay Type : DIGITALDial Diameter : 2 - 3.9 InchesOrigin : ChinaPower supply : 12~24v DCVOutput : Switching OutputMax. Current : 100mAProduct name : Digital Display Pressure SwitchMax. Working : 24v

• [Effortless Batch Configuration]: Precise pressure setpoints can be rapidly replicated from the master unit to multiple slave units, ensuring consistent and efficient parameter configuration across the entire system.
• [Shock-Resistant & Misoperation Prevention]: Built-in buffering intelligently adapts to pressure fluctuations and on-site vibrations, effectively preventing accidental triggering for stable and reliable operation.
• [Simple and Quick Installation]: Compact and lightweight design allows rapid integration into pneumatic piping systems. Installation and commissioning take only minutes.
• [Rugged, Durable, and Safe]: Features a robust housing suitable for standard industrial voltage and vacuum pressure ranges, delivering safe and reliable performance even under demanding conditions.
• [Intuitive Visual Control]: Easily monitor and adjust parameters via a clear digital display, making precise pressure management effortless and accessible.
